Panels & Racks
Organize Instruments and Connections Into a Practical Working Assembly
AES fabricates panels and racks for analytical, sampling, instrumentation, and process automation applications. The assembly can bring specified instruments, valves, regulators, tubing, and electrical components into an organized arrangement built from the project documentation.
Structure
Mounting and layout
Assembly
Instruments and components
Connections
Tubing and wiring
Control
Inspection and repeat builds
What It Is
What Are Instrument Panels and Racks?

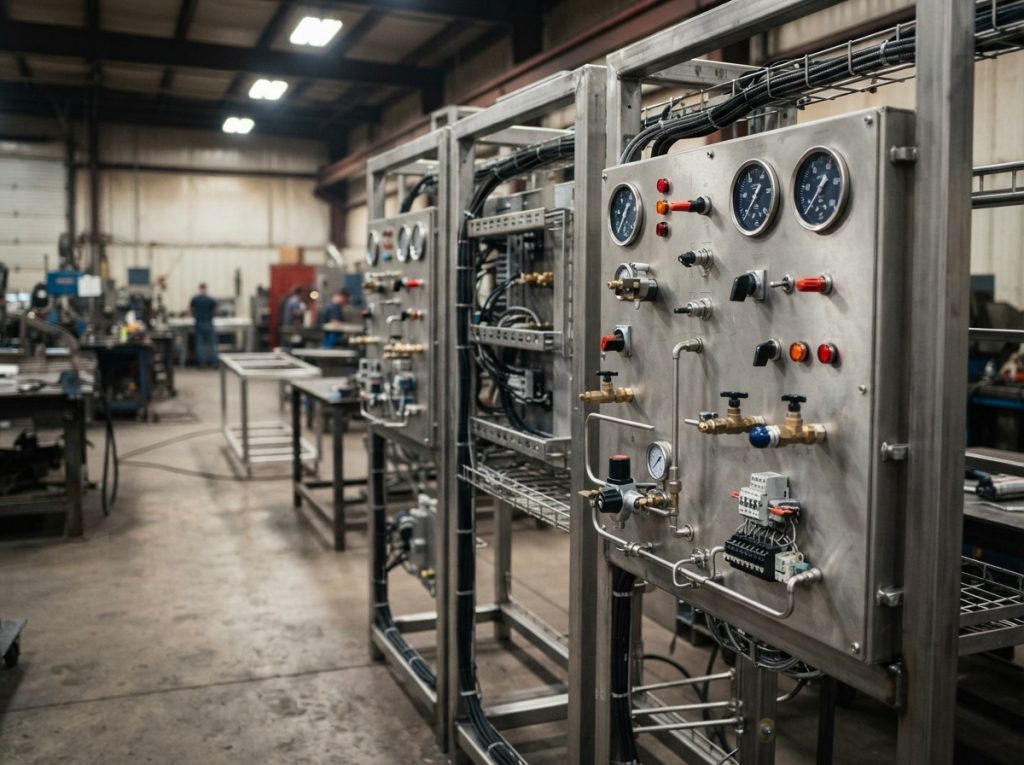

An instrument panel provides a mounting surface for components and their connections.
The assembly can bring together:
Capabilities
Panel and Rack Fabrication Capabilities
Four parts of a panel or rack build, from the structure to repeat-build control.
Mounting Structures and Layout Execution

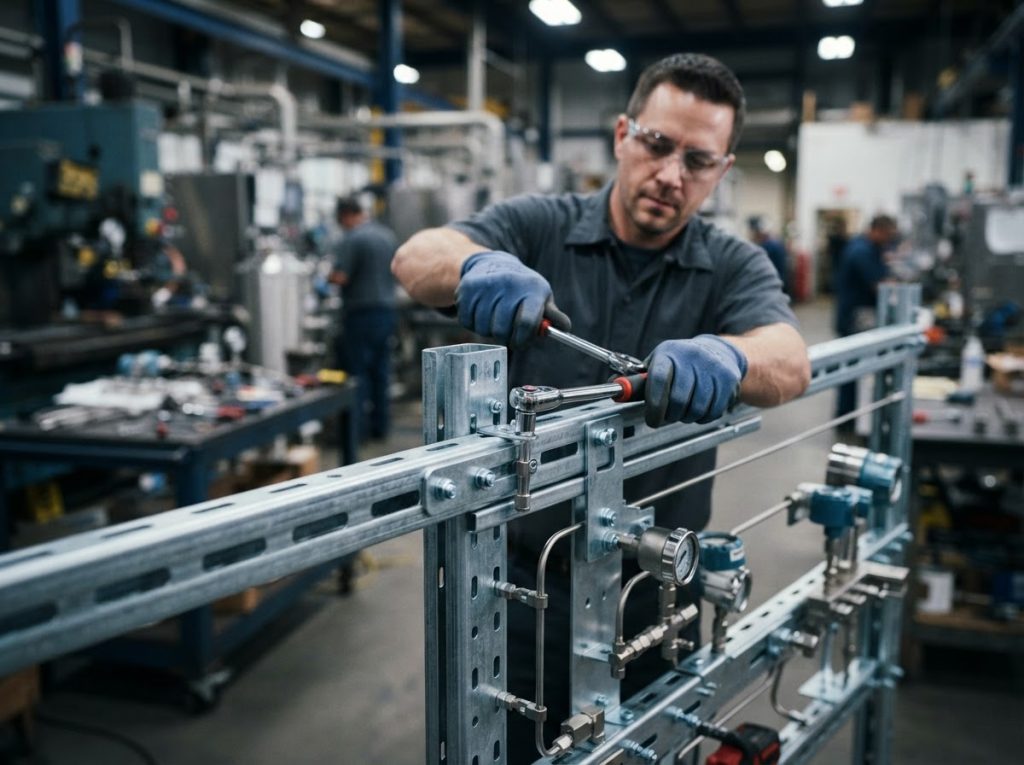

Fabrication follows approved dimensions, mounting patterns, materials, and support details. Equipment orientation and access clearances are coordinated with the intended installation and service requirements.
Instrument and Component Assembly

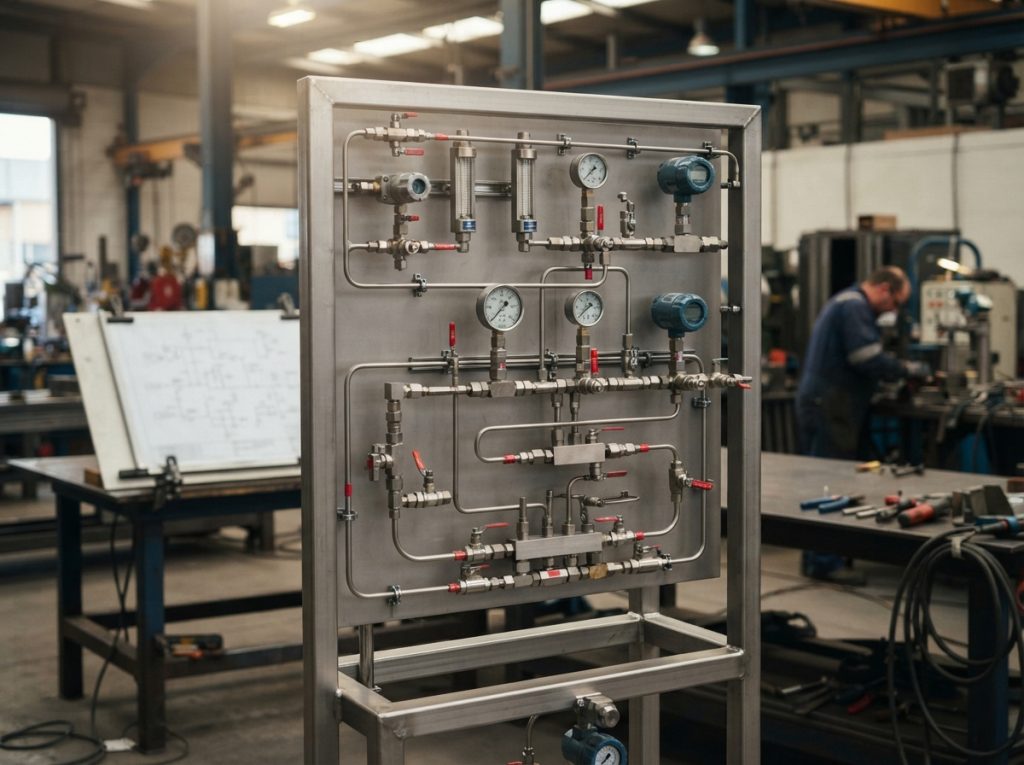

Specified instruments, valves, manifolds, regulators, and associated hardware can be installed according to the approved layout. Customer-supplied components or scoped procurement support can be incorporated into the build plan.
Tubing and Wiring Organization

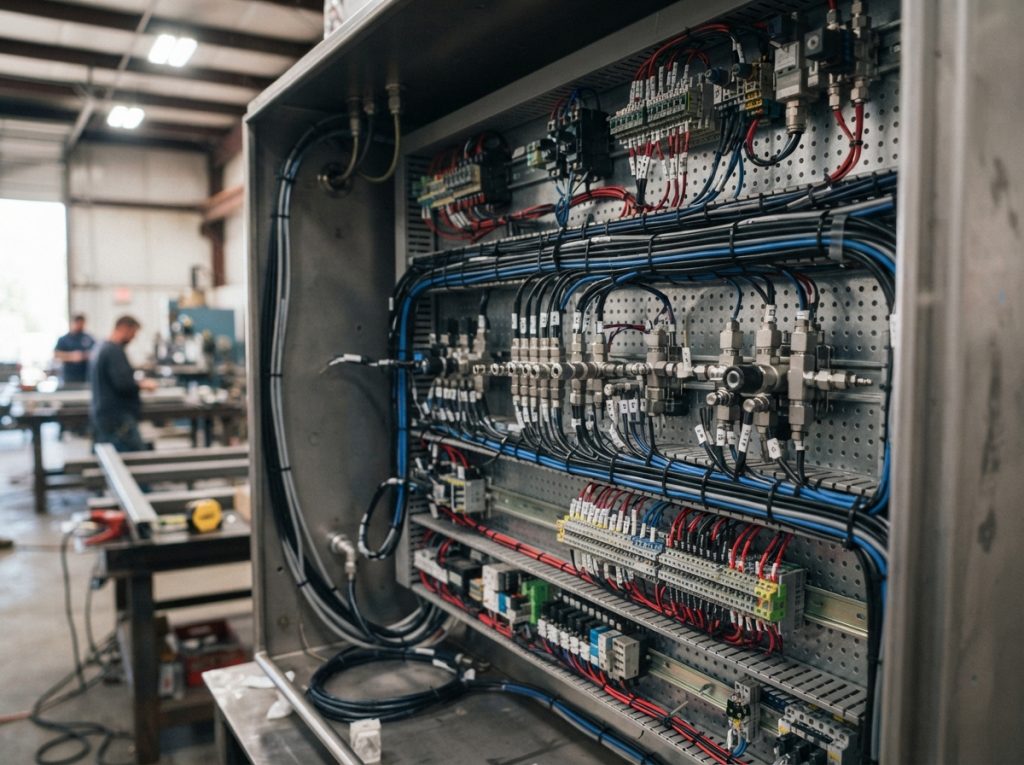

Defined tubing and electrical connections are arranged around the component layout and project requirements. Identification, separation, and connection access should be considered alongside physical fit.
Inspection and Repeat-Build Control

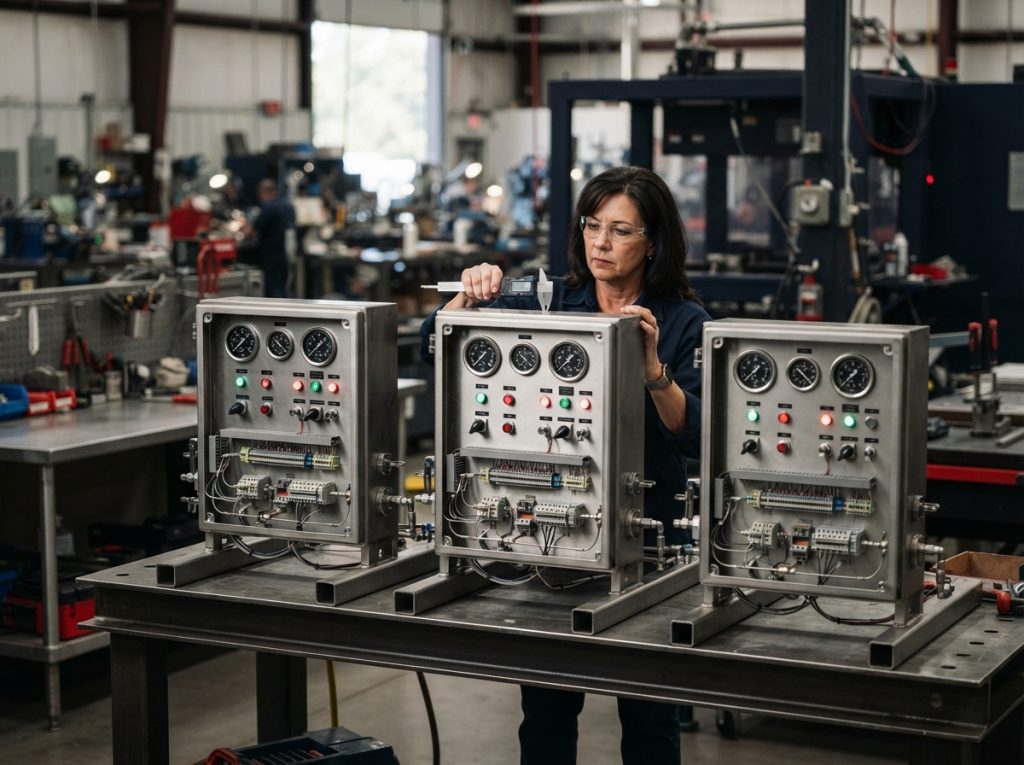

Agreed checks verify the completed assembly against the required documentation. Repeat builds should use controlled drawings, component lists, and revision information to maintain consistency across the program.
Operator & Maintenance
Built Around the Operator and Maintenance Task
Share the equipment list, mounting arrangement, process connections, and any clearance requirements for replacing components or operating valves. A compact layout may still need space for tools, calibration connections, and safe access.
For an enclosure-mounted panel, coordinate the panel layout with doors, penetrations, and environmental equipment before either fabrication package is finalized.
Discuss Panels & Racks →Share:
Why AES
Why Choose AES for Panels and Racks?
AES combines the supporting fabrication with the instrument and sample handling assembly that sits on it. Customers can request a focused structural build or a coordinated panel package with components, connections, and specified checks.
Supporting fabrication
Instrument assembly
Sample handling assembly
Can AES build from an existing panel drawing?
Yes. Provide the current approved drawing, bill of materials, connection details, and inspection requirements. Confirm any field changes that are not reflected in the original documentation.
Can panels be built for repeat installations?
Yes. A repeat-build scope should define the standard configuration, permitted variations, component availability, and revision process so each delivered assembly matches its intended application.
Does panel fabrication include a certified electrical control panel?
Only if the required certification, construction scope, and responsible provider are explicitly established for the project. An instrument mounting panel and a certified electrical control panel are not interchangeable descriptions.
